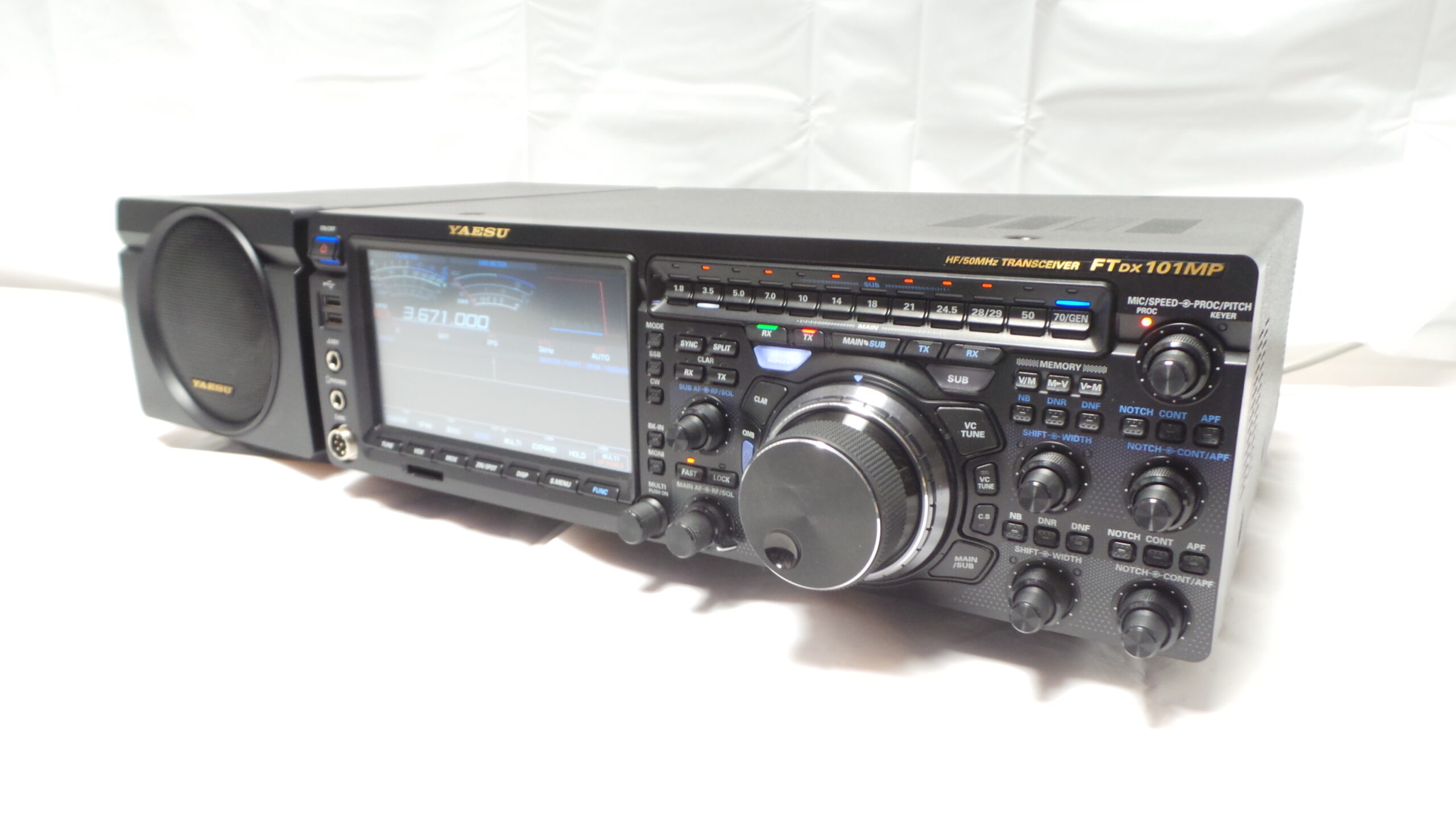

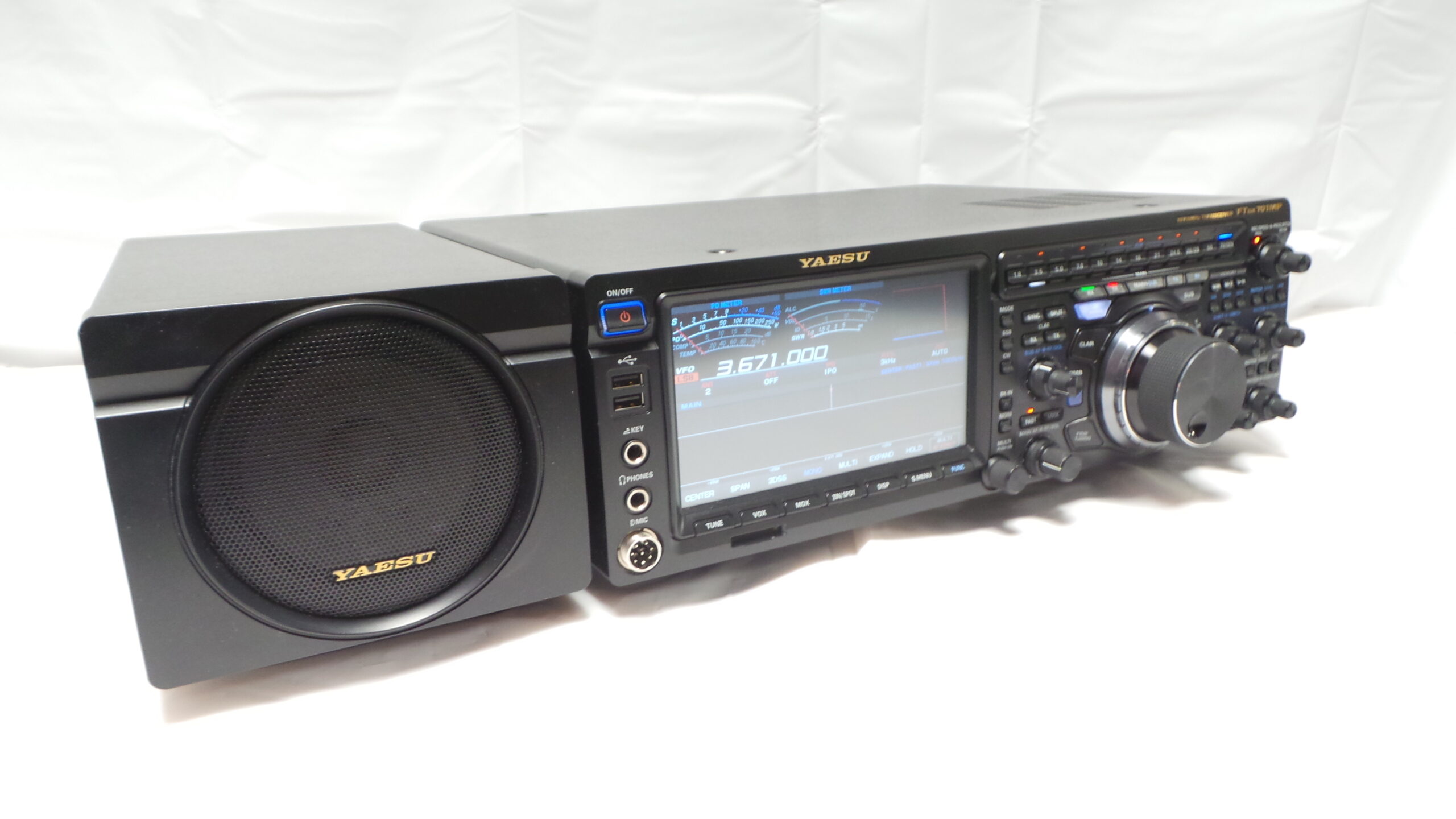

Yaesu FTDX-101MP USED | 12 Months Warranty
Yaesu FTDX101MP is Yaesu’s flagship 200W HF/50MHz hybrid SDR transceiver, combining cutting-edge digital signal processing with the exceptional receiver performance and build quality that Yaesu radios are famous for.
Developed from Yaesu’s award-winning FTDX series, the FTDX101MP is engineered for operators who demand top-tier contest, DX, and base-station performance.
It employs Yaesu’s advanced Hybrid SDR architecture, using direct sampling for spectrum analysis and a narrow-band SDR (down-conversion) for high dynamic range signal handling — delivering crystal-clear reception, even in the most demanding RF environments.
Ideal for DXers, contesters, and professional HF users, the FTDX101MP represents the pinnacle of Yaesu’s transceiver design philosophy — precision engineering, superb audio quality, and intuitive operation.
Key Features
- Hybrid SDR design – Direct Sampling + Narrow-Band Down Conversion SDR
- Power Output: 200W (100W selectable mode)
- Dual independent receivers (Main/Sub) with individual controls
- 15.6-bit high-resolution ADC for wide dynamic range
- Real-time spectrum scope with waterfall and audio scope
- 7-inch colour TFT touchscreen display with intuitive controls
- Superb dynamic range performance – 120 dB RMDR typical
- Yaesu MPVD (Multi-Purpose VFO Dial) for precise tuning and control
- Dual roofing filters (12kHz / 3kHz)
- Integrated PSU and speaker unit (200W “MP” version)
- Advanced DSP noise reduction and notch filtering
- Fully tested – in excellent working and cosmetic condition
Technical Specifications
| Specification | Details |
|---|---|
| Model | Yaesu FTDX101MP |
| Frequency Coverage | 1.8 – 54 MHz |
| Modes | SSB, CW, AM, FM, RTTY, PSK, Digital |
| Power Output | 200W (HF/50MHz) selectable 100W |
| Receiver Architecture | Hybrid SDR (Direct Sampling + Down Conversion) |
| ADC Resolution | 15.6-bit |
| Dynamic Range (RMDR) | 120 dB typical |
| Display | 7” colour TFT touchscreen |
| Antenna Tuner | Built-in automatic tuner |
| Receivers | Dual independent (Main/Sub) |
| Connections | USB, LAN, ACC, IF output, external monitor |
| Power Supply | Built-in 48V PSU with external AC input |
| Dimensions | 410 × 135 × 465 mm |
| Weight | Approx. 18.5 kg |
| Condition | Second hand – tested and excellent |
| Manufacturer | Yaesu Musen Co. Ltd., Japan |
Performance Highlights
- Flagship Yaesu performance with Hybrid SDR system
- Dual high-performance receivers for diversity and split operation
- 200W PEP output power for powerful, clean signal transmission
- Exceptional receiver selectivity and noise reduction
- 7-inch spectrum display with MPVD control for quick access
- Built-in PSU and speaker (unique to the MP edition)
- Ideal for high-end HF operators, contesters, and DX stations
