Description

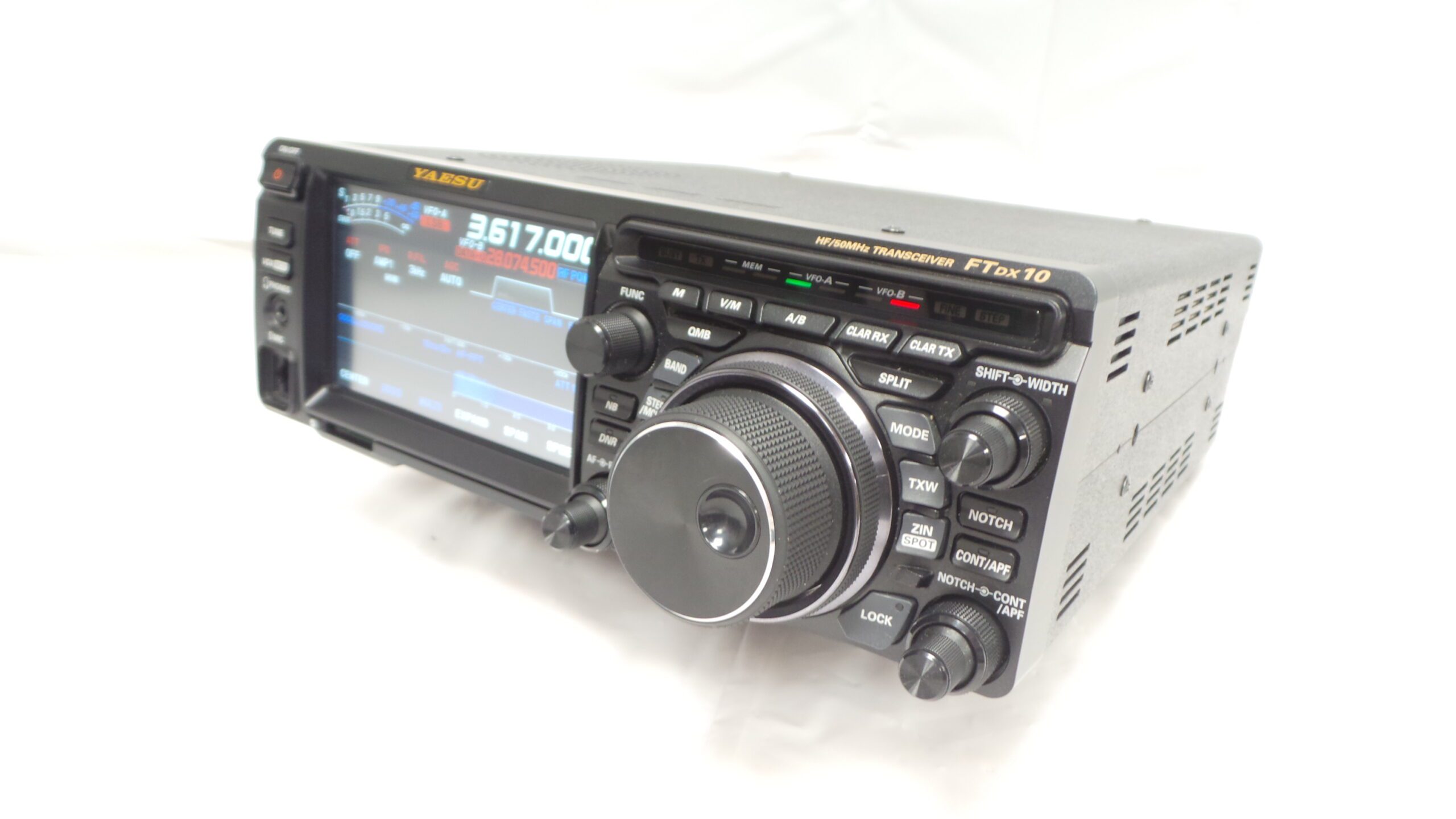

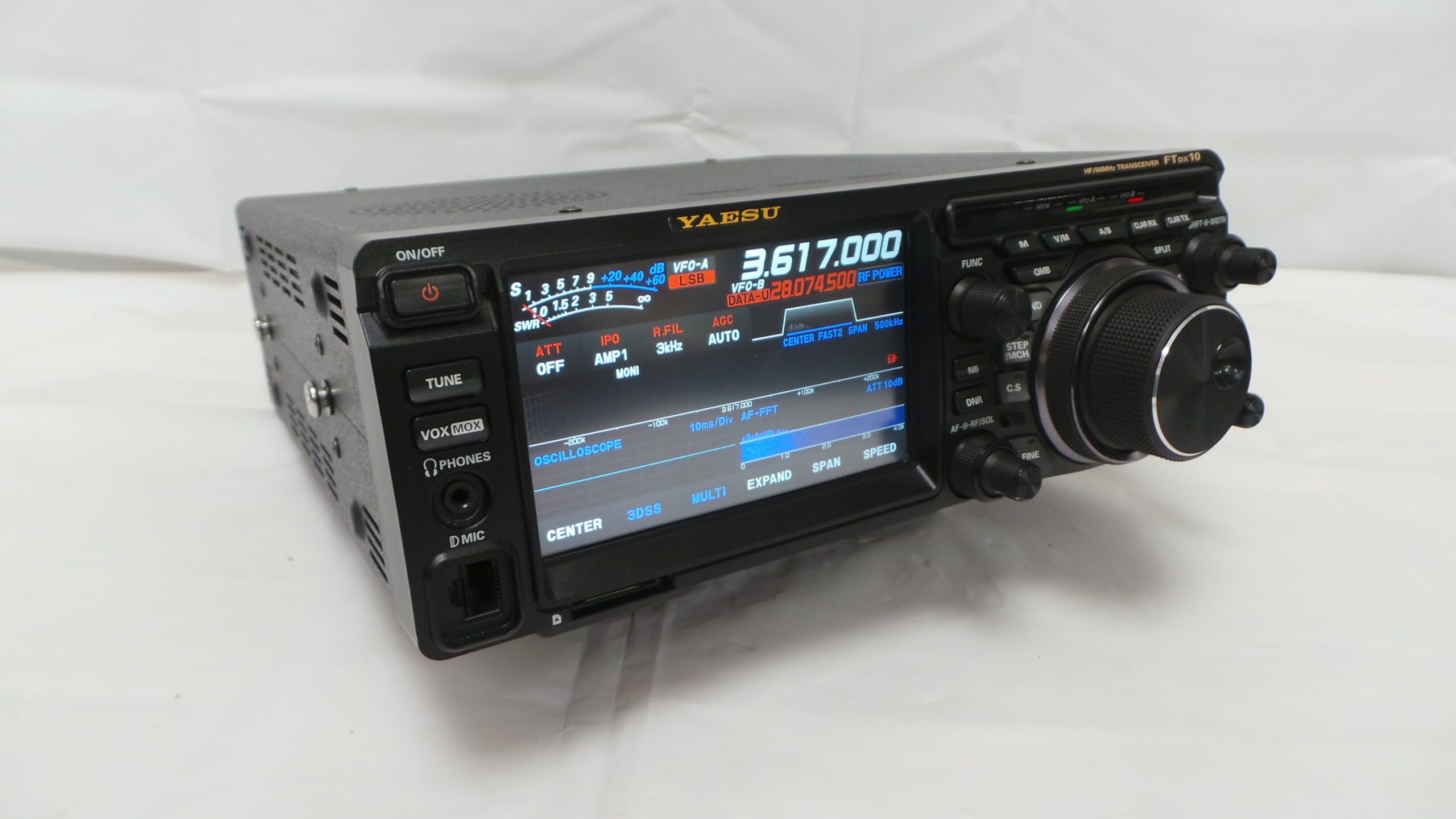

Yaesu FTDX-10 USED | 12 Months Warranty
Derived from Yaesu’s flagship FTDX101 series, the FTDX10 combines direct sampling SDR technology with a first IF roofing filter and Yaesu’s renowned Hybrid SDR architecture — delivering exceptional close-in dynamic range, superior receiver sensitivity, and strong adjacent signal handling.
This used unit is in excellent condition, fully tested and ready for use. It offers 100W output power, superior DSP filtering, and a bright 5-inch colour touchscreen display, giving operators full control of advanced filtering, spectrum scope, and real-time waterfall displays.
With Yaesu’s exclusive Narrow Band SDR architecture, 3DSS (3D Spectrum Stream), and MPVD (Multi-Purpose VFO Encoder), the FTDX10 provides the same world-class receive performance found in larger base stations, in a more compact and affordable design.
Perfect for serious DXers, contesters, and home station operators, the FTDX10 offers superb transmit audio and operational flexibility — all in a compact, feature-rich package.
Key Features
- Second Hand Yaesu FTDX10 HF/50MHz SDR Transceiver
- Hybrid SDR architecture combining direct sampling and IF DSP
- 100W HF/50MHz output power
- Large 5″ colour TFT touchscreen with real-time waterfall and spectrum scope
- First IF roofing filters: 12 kHz, 3 kHz, 600 Hz
- IF DSP filtering and digital noise reduction for crystal-clear reception
- Built-in 15-band automatic antenna tuner
- MPVD Multi-Purpose VFO Encoder with fine tuning and function shortcuts
- 3DSS (3D Spectrum Stream) for real-time band activity visualisation
- USB connectivity for CAT control, digital modes, and PC integration
- SD card slot for recording, playback, and firmware updates
- Used and fully tested – in excellent operational condition
Technical Specifications
| Specification | Details |
|---|---|
| Model | Yaesu FTDX10 |
| Frequency Coverage | 1.8 – 54 MHz (amateur bands) |
| Modes | SSB, CW, AM, FM, RTTY, PSK, C4FM (digital) |
| Output Power | 100W (SSB/CW/FM) / 25W (AM) |
| Receiver Architecture | Hybrid SDR with IF Roofing Filters |
| First IF Frequency | 9 MHz |
| Roofing Filters | 12 kHz / 3 kHz / 600 Hz |
| Display | 5-inch colour TFT touchscreen |
| Spectrum Scope | Real-time with waterfall display |
| Antenna Tuner | Built-in automatic 15-band tuner |
| Connections | USB (CAT/audio), LAN (firmware support), SD card |
| Power Supply | 13.8V DC ±10%, 23A max |
| Dimensions | 266 × 91 × 263 mm |
| Weight | 5.9 kg |
| Condition | Second hand – tested and fully functional |
| Manufacturer | Yaesu Musen Co. Ltd., Japan |
Performance Highlights
- Derived from the FTDX101D/MP flagship technology
- Dynamic range performance: 116 dB (RMDR typical)
- Low-phase-noise oscillator for ultra-clean signal reproduction
- Enhanced digital noise reduction (DNR) and notch filtering
- Robust 32-bit floating-point DSP
